JMTG030P02A دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
JMTG030P02A
|
|
حجم فایل
|
82.747
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Jiangsu JieJie Microelectronics JMTG030P02A
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
33W
-
Total Gate Charge (Qg@Vgs):
100nC@4.5V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
15nF@10V
-
Continuous Drain Current (Id):
85A
-
Gate Threshold Voltage (Vgs(th)@Id):
1V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
1068pF@10V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
2.1mΩ@4.5V,30A
-

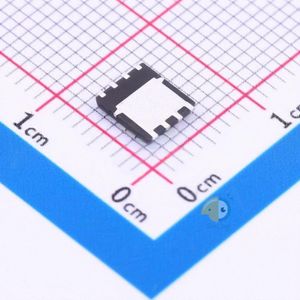

Package:
PDFN-8(5x5.8)
-
Manufacturer:
Jiangsu JieJie Microelectronics
