STN4402 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STN4402
|
|
حجم فایل
|
52.716
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STANSON Tech. STN4402
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
2.5W
-
Total Gate Charge (Qg@Vgs):
16nC@10V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
1.35nF@15V
-
Continuous Drain Current (Id):
12A
-
Gate Threshold Voltage (Vgs(th)@Id):
3V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
150pF@15V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
10mΩ@10V,12A
-

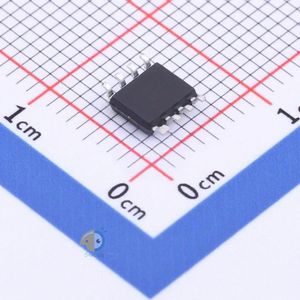

Package:
SOP-8
-
Manufacturer:
STANSON Tech.
