PH-00174 数据手册
其他文档
未找到其他文档！
技术规格
- RoHS: true
- Color: Black
- Pitch: 2.54mm
- Category: Connectors/Pin Headers

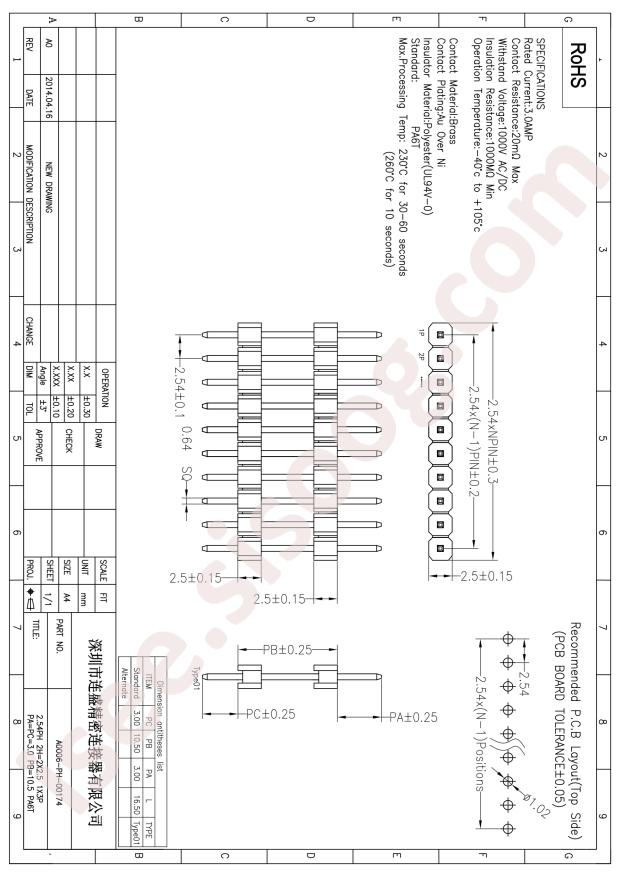

- Datasheet: Liansheng PH-00174
- Row Spacing: -
- Mounting Type: Straight
- Pin Structure: 1x3P
- Number of Pins: 3P
- Number of Rows: Plugin
- Contact Material: -
- Insulation Height: -
- Current Rating (Max): 3A
- Length of Mating Pin: 3mm
- Voltage Rating (Max): -
- Circluar Pins/Square Pins: Square Pins
- Operating Temperature Range: -40°C~+105°C
- Length of End Connection Pin: 3mm
- Package: Plugin,P=2.54mm
- Manufacturer: Liansheng
