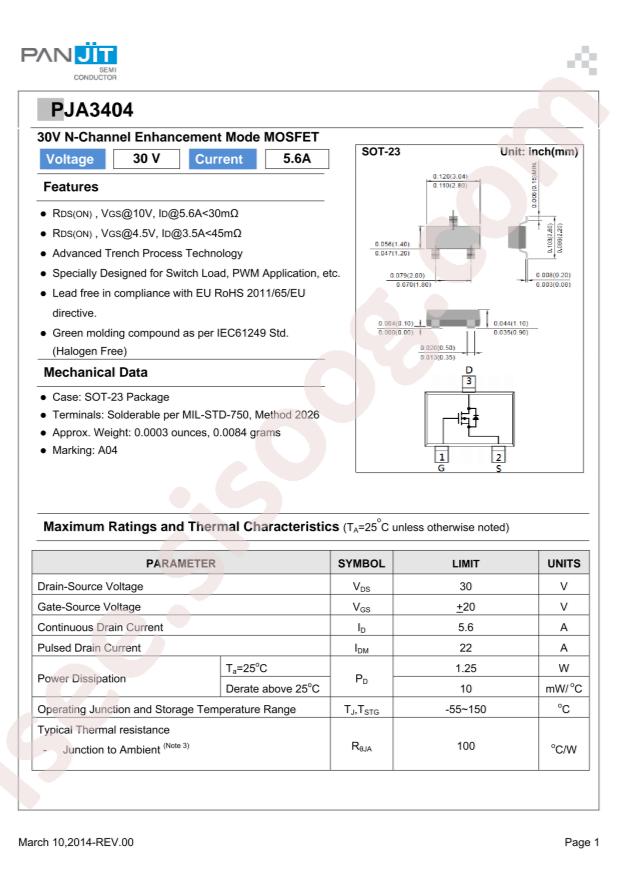

PJA3404_R1_00001 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
PJA3404_R1_00001
|
|
حجم فایل
|
77.846
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
PANJIT International PJA3404_R1_00001
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
1.25W
-
Total Gate Charge (Qg@Vgs):
7.8nC@10V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
343pF@15V
-
Continuous Drain Current (Id):
5.6A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.1V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
45mΩ@4.5V,3.5A
-

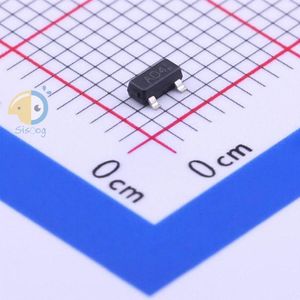

Package:
SOT-23
-
Manufacturer:
PANJIT International
