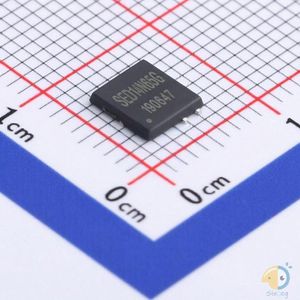

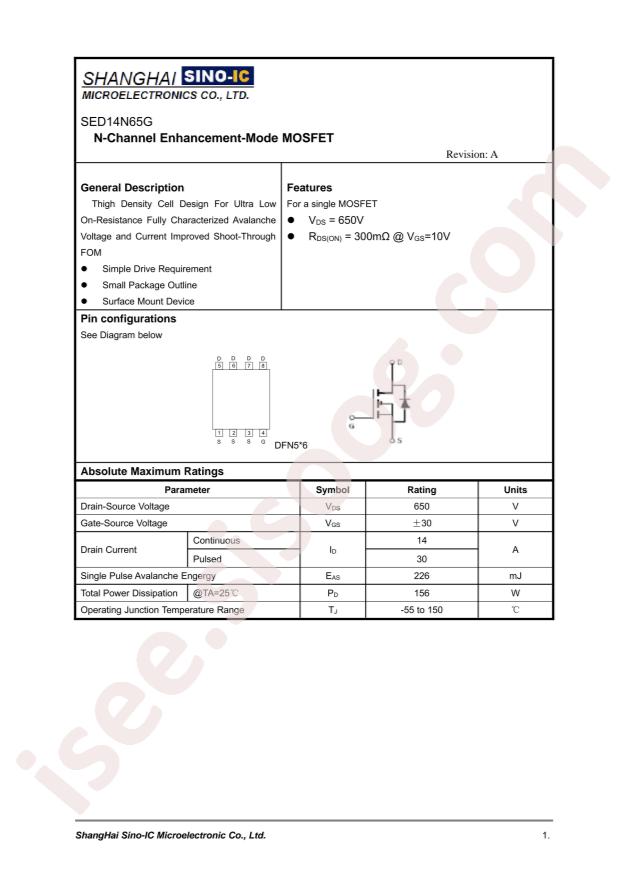

SED14N65G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SED14N65G
|
|
حجم فایل
|
51.953
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
SINO-IC SED14N65G
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
156W
-
Total Gate Charge (Qg@Vgs):
35nC@10V
-
Drain Source Voltage (Vdss):
650V
-
Input Capacitance (Ciss@Vds):
1.224nF@100V
-
Continuous Drain Current (Id):
14A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
4pF@100V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
300mΩ@10V,1A
-
Package:
DFN-8(5.7x5.1)
-
Manufacturer:
SINO-IC
