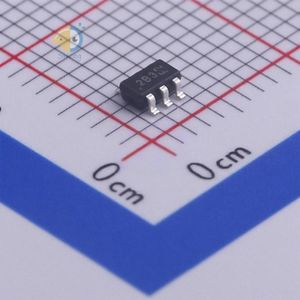

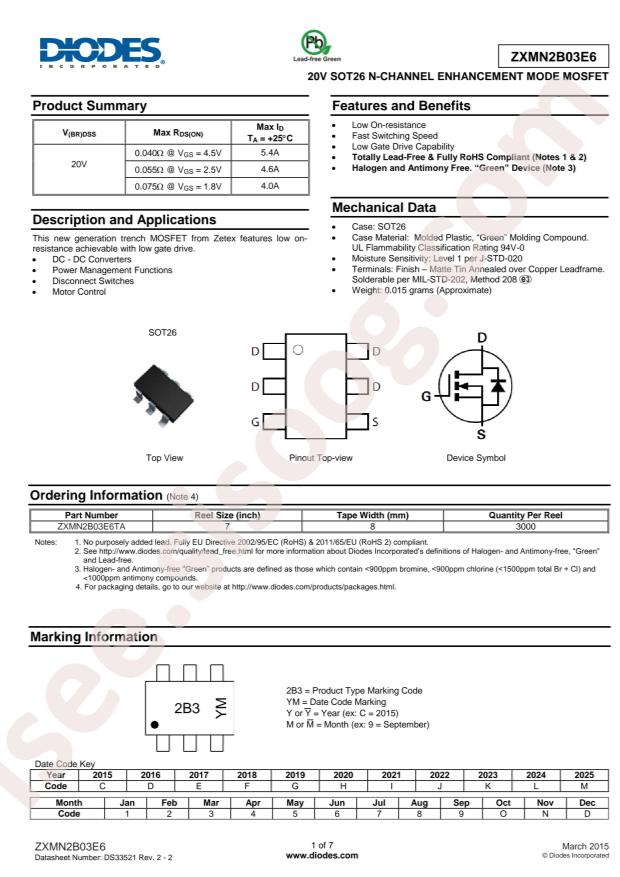

ZXMN2B03E6TA دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
ZXMN2B03E6TA
|
|
حجم فایل
|
87.975
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Diodes Incorporated ZXMN2B03E6TA
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
1.1W
-
Total Gate Charge (Qg@Vgs):
14.5nC@4.5V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
1160pF@10V
-
Continuous Drain Current (Id):
4.3A
-
Gate Threshold Voltage (Vgs(th)@Id):
1V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
40mΩ@4.5V,4.3A
-
Package:
SOT-26
-
Manufacturer:
Diodes Incorporated
