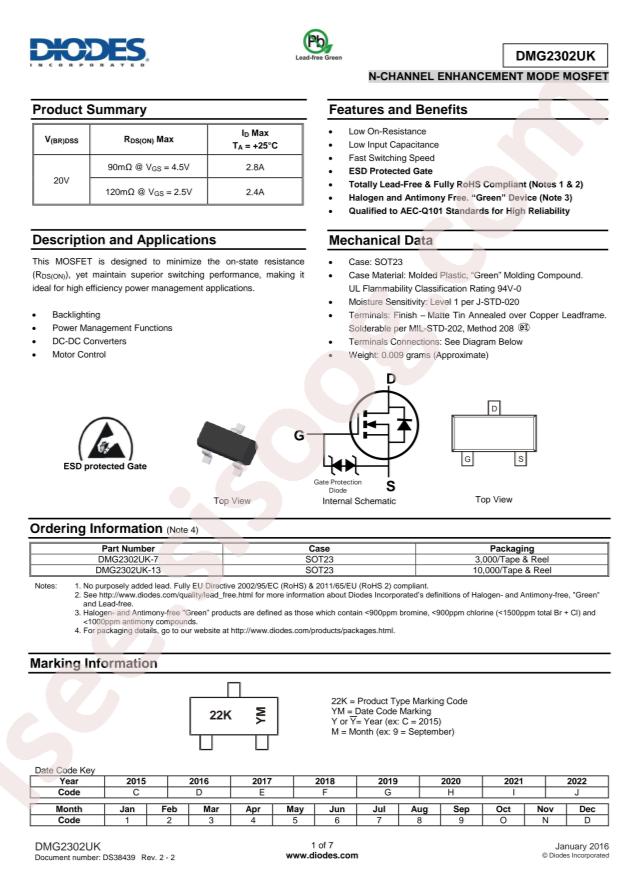

دیتاشیت DMG2302UK-7
مشخصات دیتاشیت
| نام دیتاشیت |
DMG2302UK-7
|
| حجم فایل |
92.529
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
7
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Diodes Incorporated DMG2302UK-7
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
660mW
-
Total Gate Charge (Qg@Vgs):
2.8nC@10V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
130pF@10V
-
Continuous Drain Current (Id):
2.8A
-
Gate Threshold Voltage (Vgs(th)@Id):
1V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
90mΩ@4.5V,3.6A
-
Package:
SOT-23
-
Manufacturer:
Diodes Incorporated
