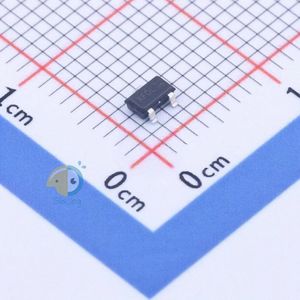

AO3415AL دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
AO3415AL
|
|
حجم فایل
|
55.441
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Alpha & Omega Semicon AO3415AL
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
1.5W
-
Total Gate Charge (Qg@Vgs):
9.3nC@4.5V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
751pF@10V
-
Continuous Drain Current (Id):
5A
-
Gate Threshold Voltage (Vgs(th)@Id):
0.57V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
80pF@10V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
34mΩ@4.5V,4A
-
Package:
SOT-23
-
Manufacturer:
Alpha & Omega Semicon
