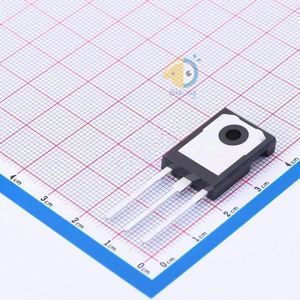

NTHL125N65S3H دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NTHL125N65S3H
|
|
حجم فایل
|
50.018
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
11
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NTHL125N65S3H
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
171W
-
Total Gate Charge (Qg@Vgs):
44nC@10V
-
Drain Source Voltage (Vdss):
650V
-
Input Capacitance (Ciss@Vds):
2.2nF@400V
-
Continuous Drain Current (Id):
24A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@2.1mA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
108mΩ@10V,12A
-
Package:
TO-247
-
Manufacturer:
onsemi
