AON7407 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
AON7407
|
|
حجم فایل
|
67.353
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
13
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Alpha & Omega Semicon AON7407
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
3.1W;29W
-
Total Gate Charge (Qg@Vgs):
53nC@4.5V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
4195pF@10V
-
Continuous Drain Current (Id):
14.5A;40A
-
Gate Threshold Voltage (Vgs(th)@Id):
900mV@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
9.5mΩ@4.5V,14A
-

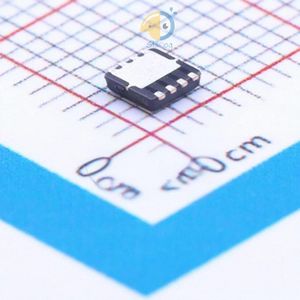

Package:
DFN-8(3x3)
-
Manufacturer:
Alpha & Omega Semicon
