AP2301B دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
AP2301B
|
|
حجم فایل
|
43.285
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
ALLPOWER(ShenZhen Quan Li Semiconductor) AP2301B
-
Power Dissipation (Pd):
750mW
-
Total Gate Charge (Qg@Vgs):
-
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
210pF@6V
-
Continuous Drain Current (Id):
2A
-
Gate Threshold Voltage (Vgs(th)@Id):
950mV@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
27pF@6V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
130mΩ@4.5V,2A
-

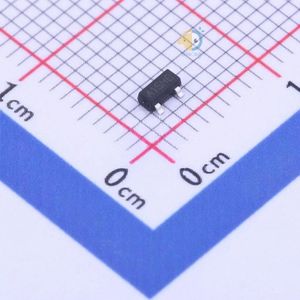

Package:
SOT-23-3
-
Manufacturer:
ALLPOWER(ShenZhen Quan Li Semiconductor)
