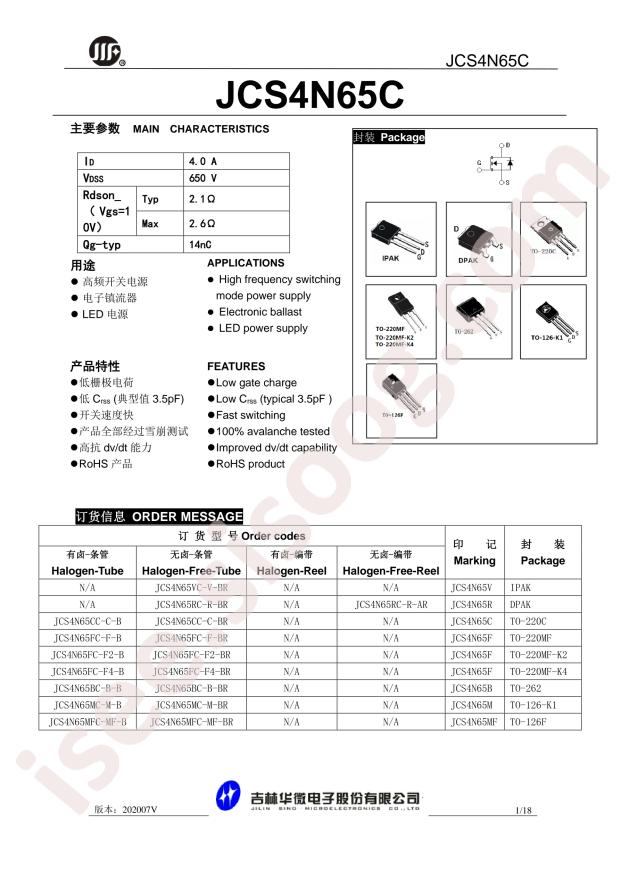

JCS4N65FC دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
JCS4N65FC
|
|
حجم فایل
|
83.2
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
18
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Jilin Sino-Microelectronics JCS4N65FC
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
33W
-
Total Gate Charge (Qg@Vgs):
14nC@10V
-
Drain Source Voltage (Vdss):
650V
-
Input Capacitance (Ciss@Vds):
670pF@25V
-
Continuous Drain Current (Id):
4A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
3.5pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
2.1Ω@10V,2A
-
Package:
TO-220
-
Manufacturer:
Jilin Sino-Microelectronics
