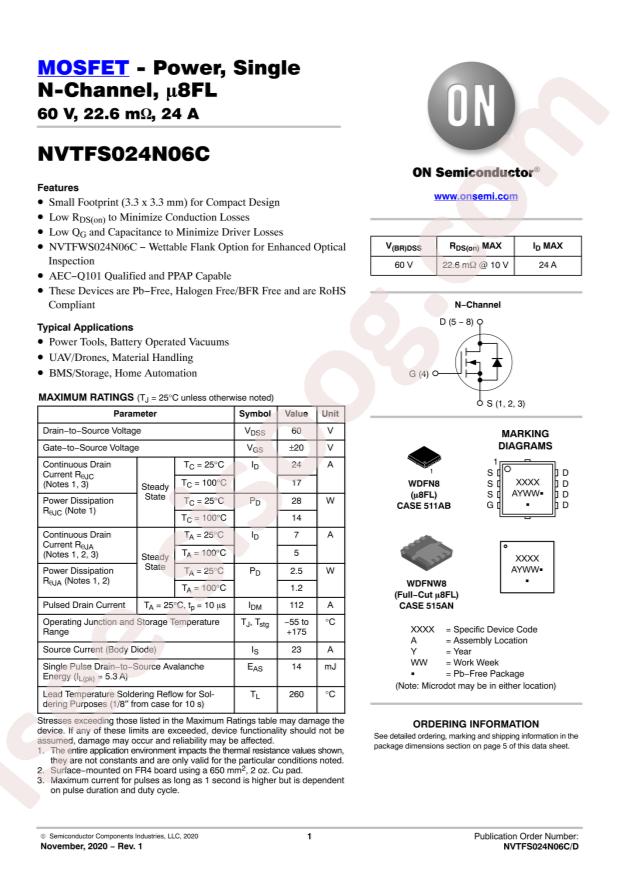

NVTFS024N06CTAG دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
NVTFS024N06CTAG
|
|
حجم فایل
|
92.555
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
onsemi NVTFS024N06CTAG
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
2.5W;28W
-
Total Gate Charge (Qg@Vgs):
5.7nC@10V
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
333pF@30V
-
Continuous Drain Current (Id):
7A;24A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@20uA
-
Reverse Transfer Capacitance (Crss@Vds):
5.05pF@30V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
18.8mΩ@10V,3A
-
Package:
DFN-8(3.3x3.3)
-
Manufacturer:
onsemi
