WNM2072-3/TR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
WNM2072-3/TR
|
|
حجم فایل
|
56.068
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-

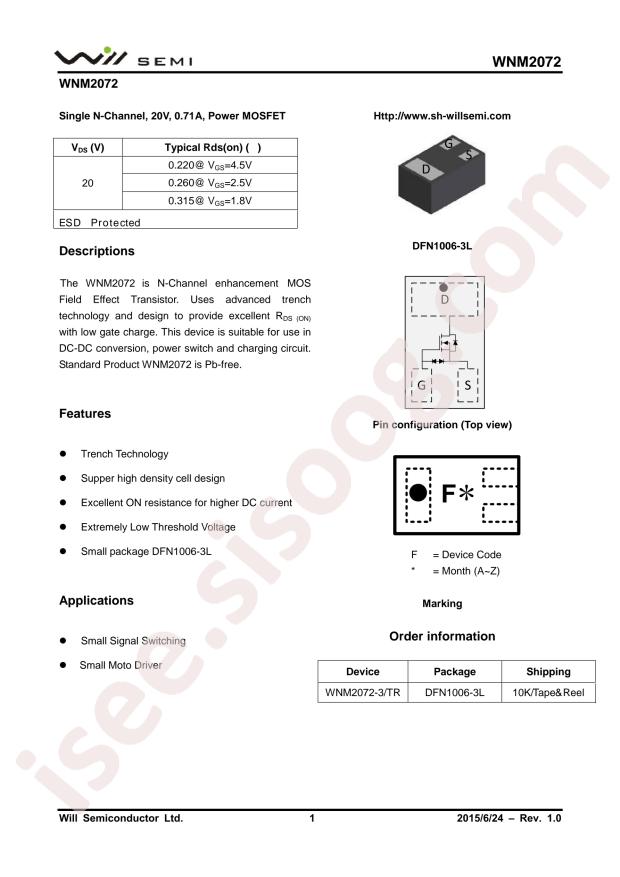

Datasheet:
WILLSEMI(Will Semicon) WNM2072-3/TR
-
Operating Temperature:
+150°C@(Tj)
-
Power Dissipation (Pd):
270mW
-
Total Gate Charge (Qg@Vgs):
870pC@4.5V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
50.6pF@10V
-
Continuous Drain Current (Id):
660mA
-
Gate Threshold Voltage (Vgs(th)@Id):
580mV@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
8.3pF@10V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
220mΩ@4.5V,550mA
-
Package:
DFN-3(0.6x1)
-
Manufacturer:
WILLSEMI(Will Semicon)
