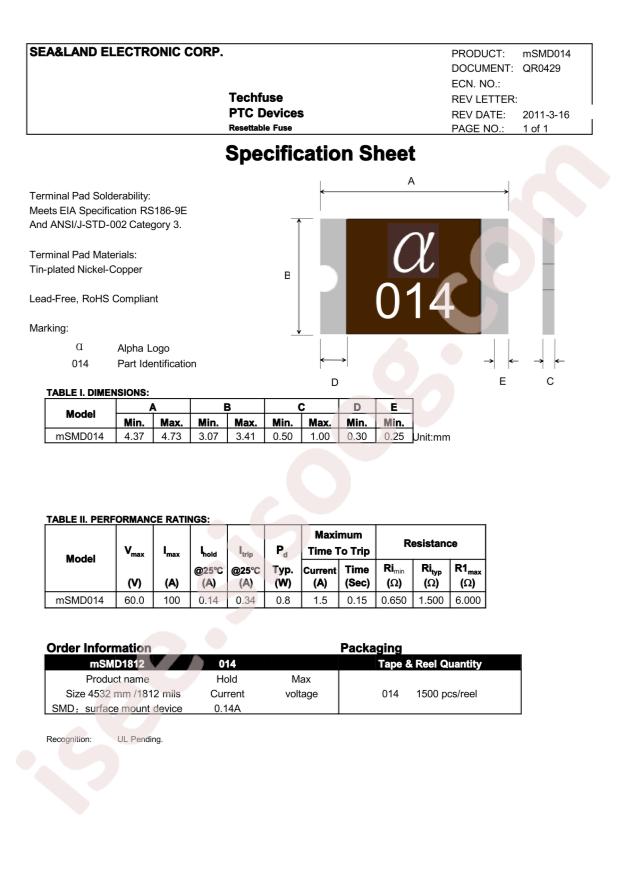

ASMD1812-014 Datasheet
Datasheet specifications
|
Datasheet's name
|
ASMD1812-014
|
|
File size
|
62.807
KB
|
|
File type
|
pdf
|
|
Number of pages
|
1
|
Technical specifications
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/Resettable Fuses
-
Datasheet:
Shenzhen JDT Fuse ASMD1812-014
-
Hold Current:
140mA
-
Trip Current:
340mA
-
Power Dissipation:
800mW
-
Current Rating (Max):
100A
-
Maximum Time to Trip:
150ms
-
Operating Temperature:
-40°C~+85°C
-
Operating Voltage (Max):
60V
-
Resistance - Initial (Ri) (Min):
650mΩ
-
Resistance - Post Trip (R1) (Max):
6Ω
-
Package:
1812
-
Manufacturer:
Shenzhen JDT Fuse
