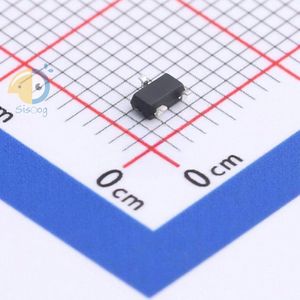

AO3485C دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
AO3485C
|
|
حجم فایل
|
66.938
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-

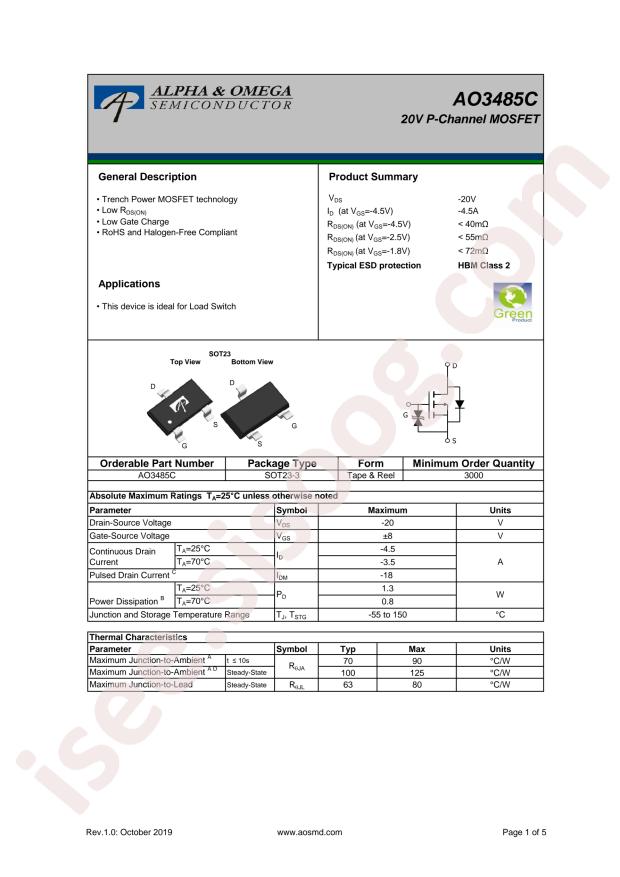

Datasheet:
Alpha & Omega Semicon AO3485C
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
1.3W
-
Total Gate Charge (Qg@Vgs):
8.5nC@4.5V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
930pF@10V
-
Continuous Drain Current (Id):
4.5A
-
Gate Threshold Voltage (Vgs(th)@Id):
550mV@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
80pF@10V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
33mΩ@4.5V,4.5A
-
Package:
SOT-23-3
-
Manufacturer:
Alpha & Omega Semicon
