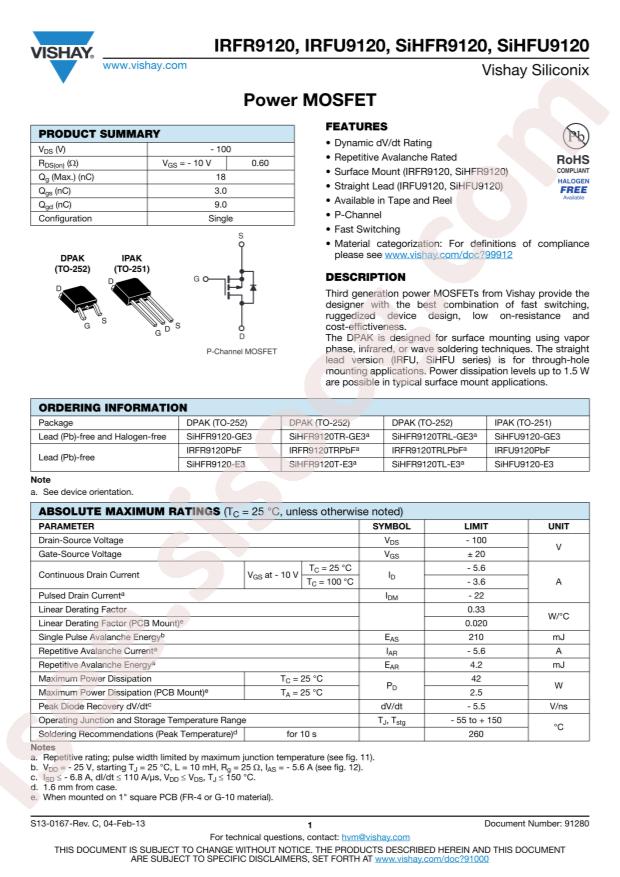

دیتاشیت IRFU9120PBF
مشخصات دیتاشیت
| نام دیتاشیت |
IRFU9120PBF
|
| حجم فایل |
109.556
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Vishay Intertech IRFU9120PBF
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
2.5W;42W
-
Total Gate Charge (Qg@Vgs):
18nC@10V
-
Drain Source Voltage (Vdss):
100V
-
Input Capacitance (Ciss@Vds):
390pF@25V
-
Continuous Drain Current (Id):
5.6A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
600mΩ@3.4A,10V
-
Package:
TO-251
-
Manufacturer:
Vishay Intertech
