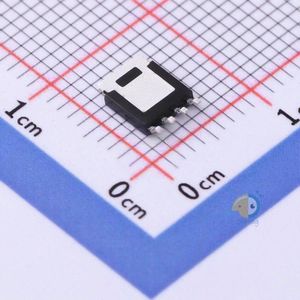

PHPT61003PYX دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
PHPT61003PYX
|
|
حجم فایل
|
56.457
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
15
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
Nexperia PHPT61003PYX
-
Transistor Type:
PNP
-
Operating Temperature:
+175°C@(Tj)
-
Collector Current (Ic):
3A
-
Power Dissipation (Pd):
3W
-
Transition Frequency (fT):
125MHz
-
DC Current Gain (hFE@Ic,Vce):
150@500mA,10V
-
Collector Cut-Off Current (Icbo):
100nA
-
Collector-Emitter Breakdown Voltage (Vceo):
100V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
220mV@2A,200mA
-
Package:
SOT-669
-
Manufacturer:
Nexperia
