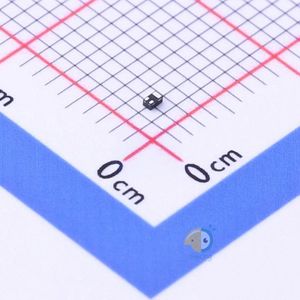

PBSS2515M,315 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
PBSS2515M,315
|
|
حجم فایل
|
51.873
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
10
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
Nexperia PBSS2515M,315
-
Transistor Type:
NPN
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
500mA
-
Power Dissipation (Pd):
430mW
-
Transition Frequency (fT):
420MHz
-
DC Current Gain (hFE@Ic,Vce):
150@100mA,2V
-
Collector Cut-Off Current (Icbo):
100nA
-
Collector-Emitter Breakdown Voltage (Vceo):
15V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
250mV@500mA,50mA
-
Package:
SOT-883-3
-
Manufacturer:
Nexperia
