CJAE10P06 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
CJAE10P06
|
|
حجم فایل
|
68.099
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Jiangsu Changjing Electronics Technology Co., Ltd. CJAE10P06
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
3W
-
Total Gate Charge (Qg@Vgs):
52nC@10V
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
4500pF@25V
-
Continuous Drain Current (Id):
10A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.2V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
515pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
26mΩ@10V,10A
-

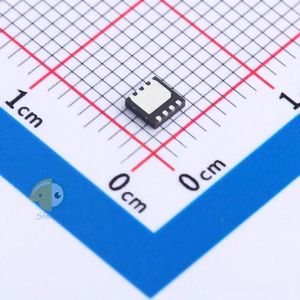

Package:
DFN-8(3x3)
-
Manufacturer:
Jiangsu Changjing Electronics Technology Co., Ltd.
