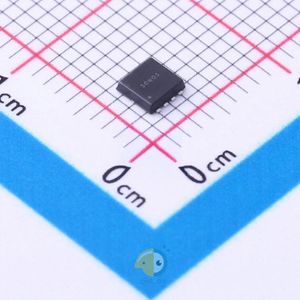

MSK30N03DF دیتاشیت

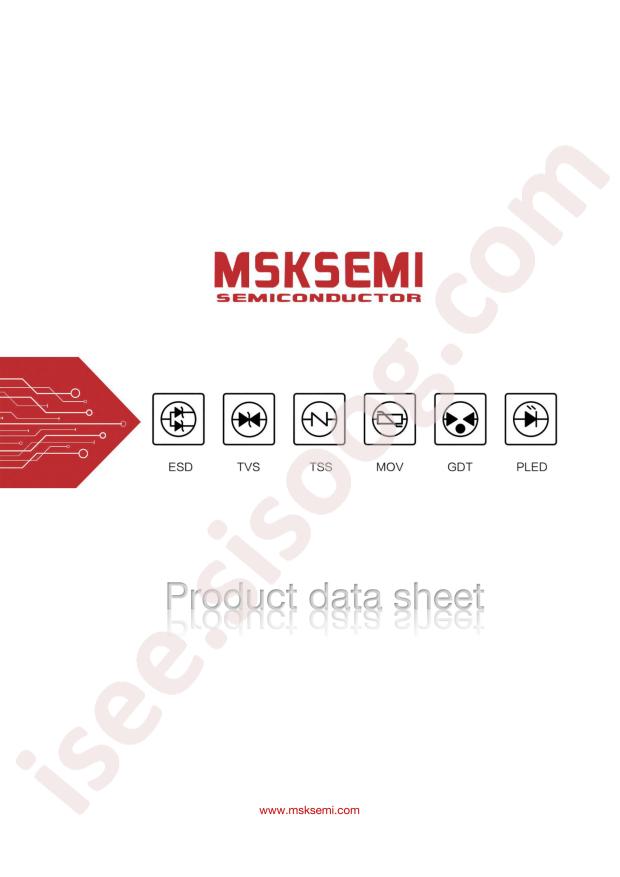

مشخصات دیتاشیت
|
نام دیتاشیت
|
MSK30N03DF
|
|
حجم فایل
|
31.11
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
MSKSEMI MSK30N03DF
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
20W
-
Total Gate Charge (Qg@Vgs):
7.2nC@4.5V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
572pF@15V
-
Continuous Drain Current (Id):
30A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.5V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
65pF@15V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
12mΩ@10V,10A
-
Package:
DFN-8(3x3)
-
Manufacturer:
MSKSEMI
