74HCT14D,653 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
74HCT14D,653
|
|
حجم فایل
|
67.084
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
16
|
مشخصات فنی
-
RoHS:
true
-
Series:
74HCT
-
Category:
Logic ICs/Inverters
-

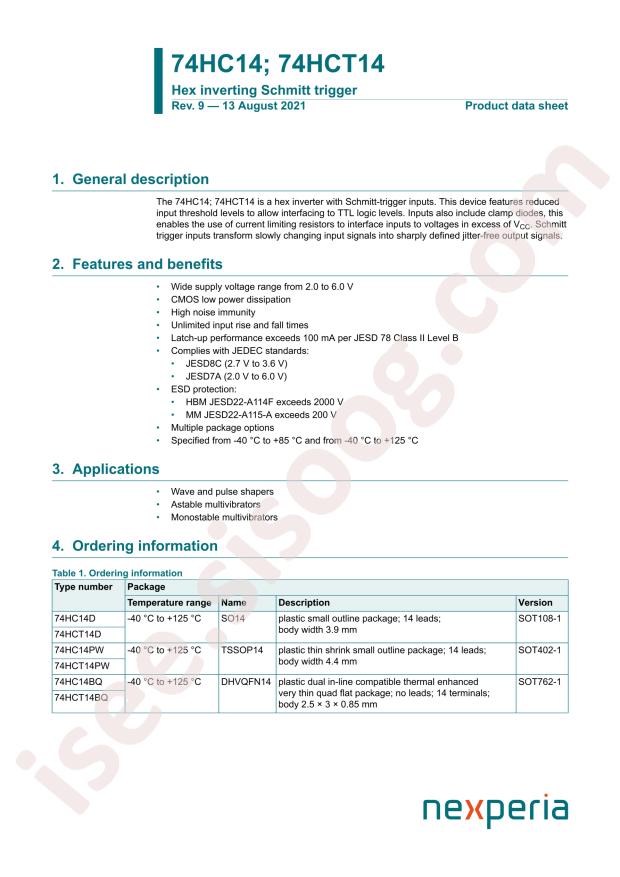

Datasheet:
Nexperia 74HCT14D,653
-
Input Type:
Schmitt Trigger
-
Sink Current:
4mA
-
Source Current:
4mA
-
Number of Inputs:
1
-
Number of Circuits:
6
-
Supply Current (Max):
2uA
-
Low level range (VIL):
0.5V~0.6V
-
Max Propagation Delay:
34ns@4.5V,50pF
-
Operating Temperature:
-40°C~+125°C
-
High level range (VIH):
1.9V~2.1V
-
Supply Voltage(Single):
4.5V~5.5V
-
Package:
SOP-14
-
Manufacturer:
Nexperia
