TLC-LSMD050/50 数据手册
其他文档
未找到其他文档！
技术规格
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/Resettable Fuses

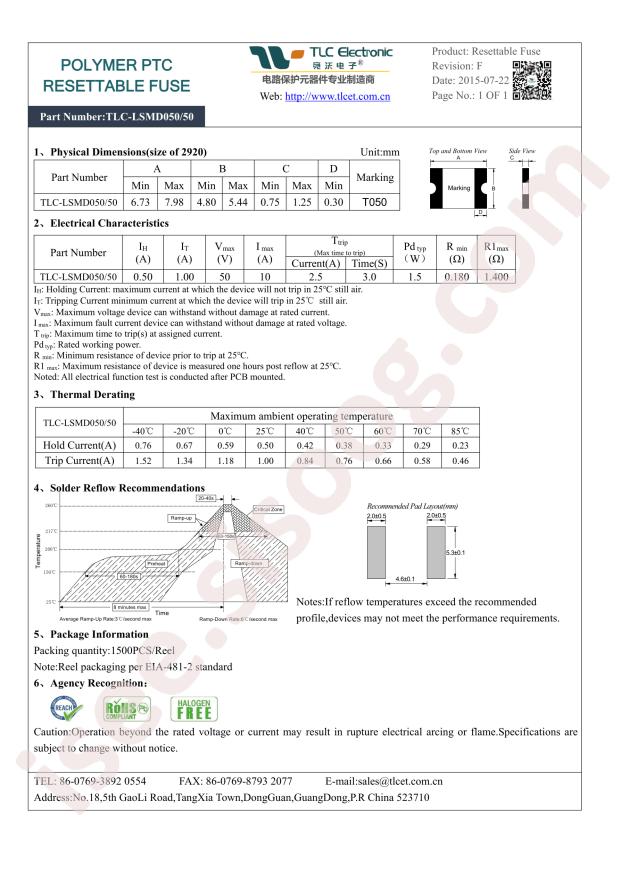

- Datasheet: TLC Electronic TLC-LSMD050/50
- Hold Current: 0.5A
- Trip Current: 1A
- Power Dissipation: 1.5W
- Current Rating (Max): 10A
- Maximum Time to Trip: 3s
- Operating Temperature: -40°C~+85°C
- Operating Voltage (Max): 50V
- Resistance - Initial (Ri) (Min): 180mΩ
- Resistance - Post Trip (R1) (Max): 1.4Ω
- Package: 2920
- Manufacturer: TLC Electronic
