AP30T10GK دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
AP30T10GK
|
|
حجم فایل
|
69.634
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
APEC(Advanced Power Elec) AP30T10GK
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
2.78W
-
Total Gate Charge (Qg@Vgs):
11.5nC@4.5V
-
Drain Source Voltage (Vdss):
100V
-
Input Capacitance (Ciss@Vds):
850pF@25V
-
Continuous Drain Current (Id):
4.8A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.5V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
80pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
55mΩ@10V,4A
-

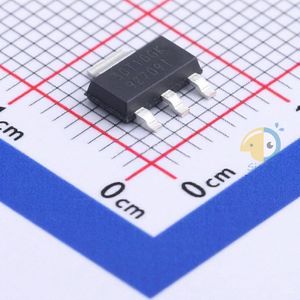

Package:
SOT-223
-
Manufacturer:
APEC(Advanced Power Elec)
