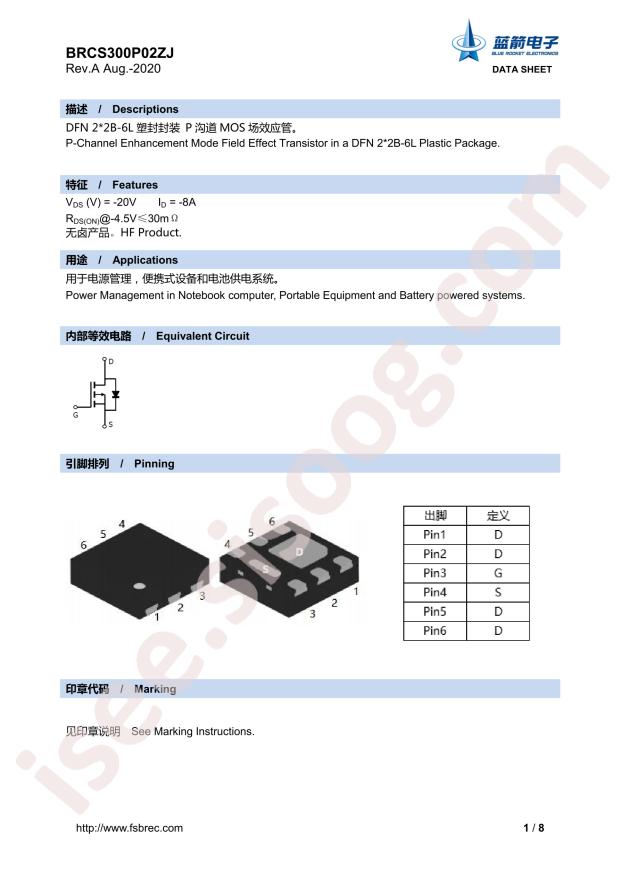

BRCS300P02ZJ دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|

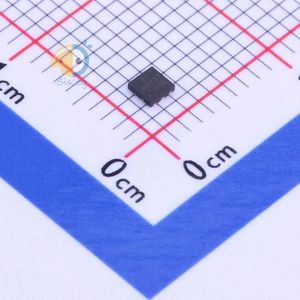

BRCS300P02ZJ
|
|
حجم فایل
|
52.442
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Foshan Blue Rocket Elec BRCS300P02ZJ
-
Operating Temperature:
+150°C@(Tj)
-
Power Dissipation (Pd):
2.8W
-
Total Gate Charge (Qg@Vgs):
13nC@4.5V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
1.05nF@25V
-
Continuous Drain Current (Id):
7A
-
Gate Threshold Voltage (Vgs(th)@Id):
700mV@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
125pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
23.7mΩ@10V,3.5A
-
Package:
DFN-6(2x2)
-
Manufacturer:
Foshan Blue Rocket Elec
