TPA73R300M دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPA73R300M
|
|
حجم فایل
|
73.89
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
WUXI UNIGROUP MICRO TPA73R300M
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
32W
-
Total Gate Charge (Qg@Vgs):
28nC@10V
-
Drain Source Voltage (Vdss):
730V
-
Input Capacitance (Ciss@Vds):
1.16nF@100V
-
Continuous Drain Current (Id):
15A
-
Gate Threshold Voltage (Vgs(th)@Id):
4.5V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
2.3pF@100V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
260mΩ@10V,7.5A
-

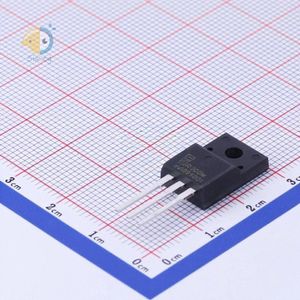

Package:
TO-220F
-
Manufacturer:
WUXI UNIGROUP MICRO
