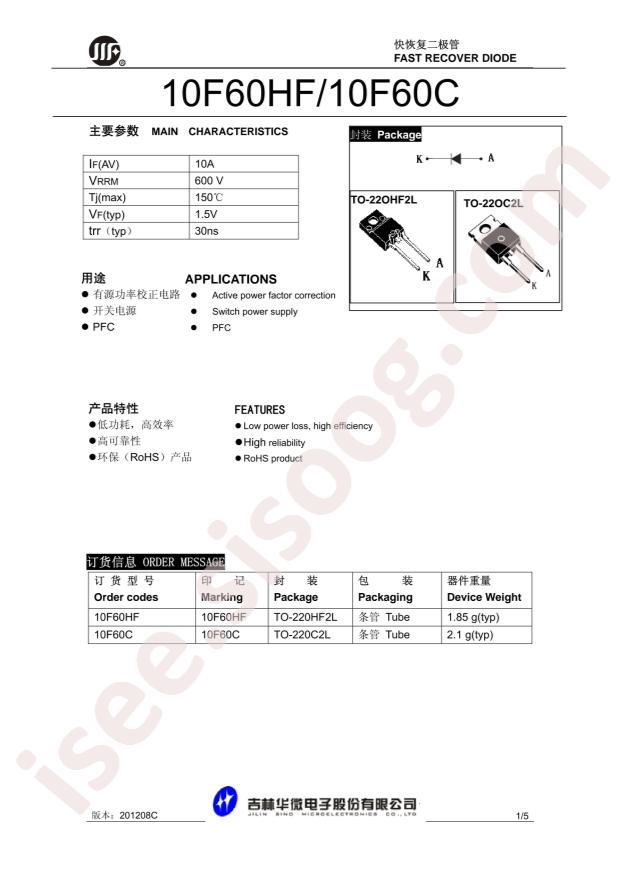

10F60HF-220HF2L Datasheet
Datasheet specifications
| Datasheet's name | 10F60HF-220HF2L |
|---|---|
| File size | 53.888 KB |
| File type | |
| Number of pages | 6 |
Download Datasheet 10F60HF-220HF2L |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- RoHS: true
- Category: Diodes/Diodes - Fast Recovery Rectifiers
- Datasheet: Jilin Sino-Microelectronics 10F60HF-220HF2L
- Diode Configuration: Single
- Reverse Voltage (Vr): 600V
- Operating Temperature: -50°C~+150°C@(Tj)
- Forward Voltage (Vf@If): 1.8V@10A
- Reverse Leakage Current: 50uA@600V
- Reverse Recovery Time (trr): 44.8ns
- Average Rectified Current (Io): 10A
- Package: TO-220-2
- Manufacturer: Jilin Sino-Microelectronics
