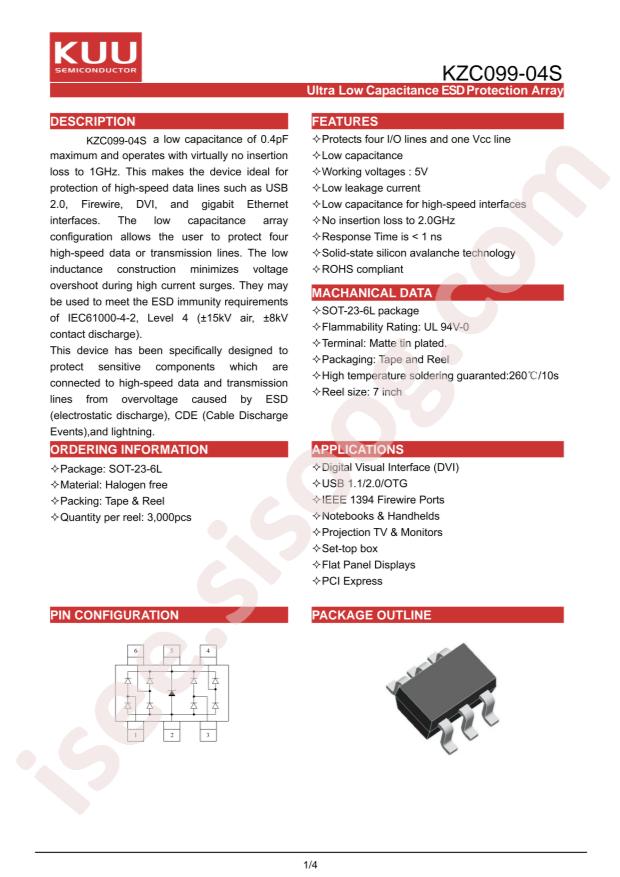

KZC099-04S Datasheet
Datasheet specifications
| Datasheet's name | KZC099-04S |
|---|---|
| File size | 80.778 KB |
| File type | |
| Number of pages | 4 |
Download Datasheet KZC099-04S |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
- Polarity: Unidirectional
- Datasheet: KUU KZC099-04S
- Number of Lines: 4
- Clamping Voltage@Ipp: 28V
- Operating Temperature: -55°C~+150°C@(Tj)
- Contact Discharge Vesd: 8kV
- Breakdown Voltage (VBR): 6V
- Reverse Leakage Current: 1uA
- Peak Pulse Power(Ppp)@8/20us: 150W
- Junction Capacitance(Cj)@1MHz: 0.4pF
- Peak Pulse Current(Ipp)@8/20us: 5A
- Reverse Stand-Off Voltage (Vrwm): 5V
- Package: SOT-23-6
- Manufacturer: KUU
