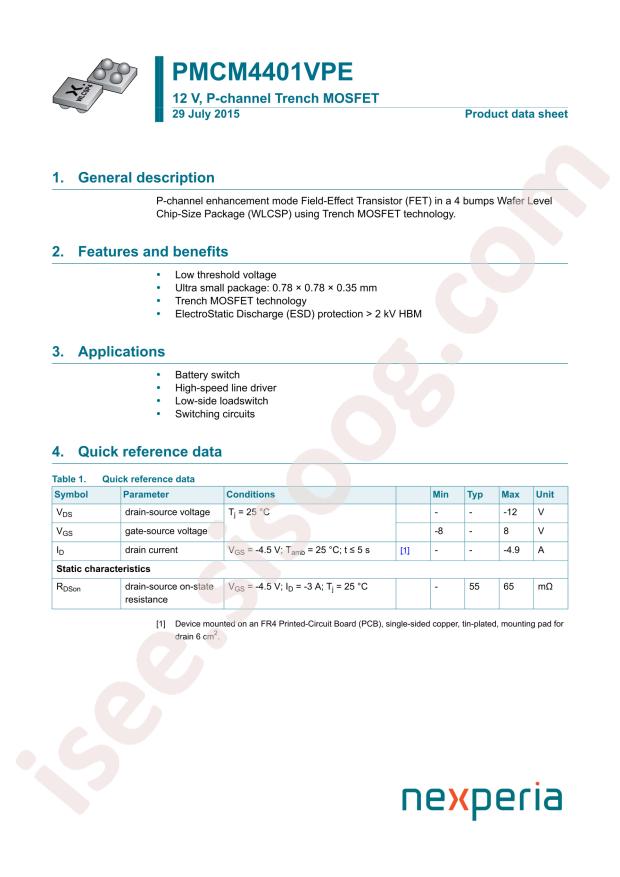

PMCM4401VPEZ دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
PMCM4401VPEZ
|
|
حجم فایل
|
57.588
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
15
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Nexperia PMCM4401VPEZ
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
400mW;12.5W
-
Total Gate Charge (Qg@Vgs):
10nC@4.5V
-
Drain Source Voltage (Vdss):
12V
-
Input Capacitance (Ciss@Vds):
415pF@6V
-
Continuous Drain Current (Id):
4.9A
-
Gate Threshold Voltage (Vgs(th)@Id):
900mV@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
165pF@6V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
55mΩ@4.5V,3A
-
Package:
WLCSP-4
-
Manufacturer:
Nexperia
