TPW60R080M دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPW60R080M
|
|
حجم فایل
|
73.673
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
WUXI UNIGROUP MICRO TPW60R080M
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
391W
-
Total Gate Charge (Qg@Vgs):
75nC@10V
-
Drain Source Voltage (Vdss):
600V
-
Input Capacitance (Ciss@Vds):
3.488nF@100V
-
Continuous Drain Current (Id):
47A
-
Gate Threshold Voltage (Vgs(th)@Id):
4.5V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
3pF@100V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
73mΩ@10V,24A
-

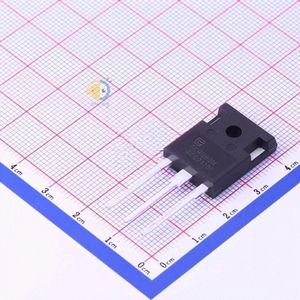

Package:
TO-247
-
Manufacturer:
WUXI UNIGROUP MICRO
