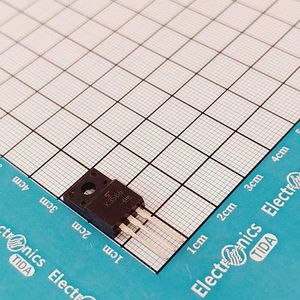

دیتاشیت 2SK3566(Q,M)
مشخصات دیتاشیت
| نام دیتاشیت |
2SK3566(Q,M)
|
| حجم فایل |
80.918
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
TOSHIBA 2SK3566(Q,M)
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
40W
-
Total Gate Charge (Qg@Vgs):
12nC@10V
-
Drain Source Voltage (Vdss):
900V
-
Input Capacitance (Ciss@Vds):
470pF@20V
-
Continuous Drain Current (Id):
2.5A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@1mA
-
Reverse Transfer Capacitance (Crss@Vds):
50pF@20V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
5.6Ω@10V,1.5A
-
Package:
SC-67
-
Manufacturer:
TOSHIBA
