74LVC14AD,112 Datasheet

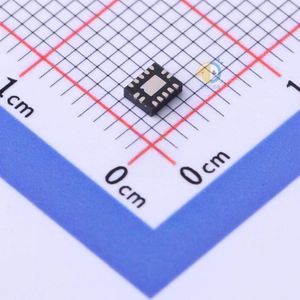

74LVC14ABQ,115

Datasheet specifications

Datasheet's name 74LVC14ABQ,115
File size 58.811 KB
File type pdf
Number of pages 18

Download Datasheet 74LVC14ABQ,115

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • RoHS: true
  • Series: 74LVC
  • Category: Logic ICs/Inverters
  • Datasheet: Nexperia 74LVC14AD,112
  • Input Type: Schmitt Trigger
  • Sink Current: 24mA
  • Source Current: 24mA
  • Number of Circuits: 6
  • Supply Current (Max): 40uA
  • Low level range (VIL): 0.12V~0.8V
  • Max Propagation Delay: 6.4ns@3.3V,50pF
  • High level range (VIH): 1V~2V
  • Supply Voltage(Single): 1.2V~3.6V
  • Package: SOP-14-4.4mm
  • Manufacturer: Nexperia
