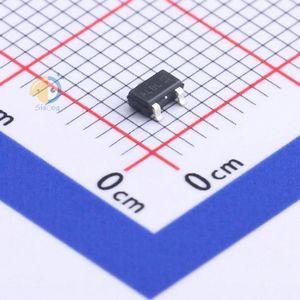

AO3419 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
AO3419
|
|
حجم فایل
|
56.451
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-

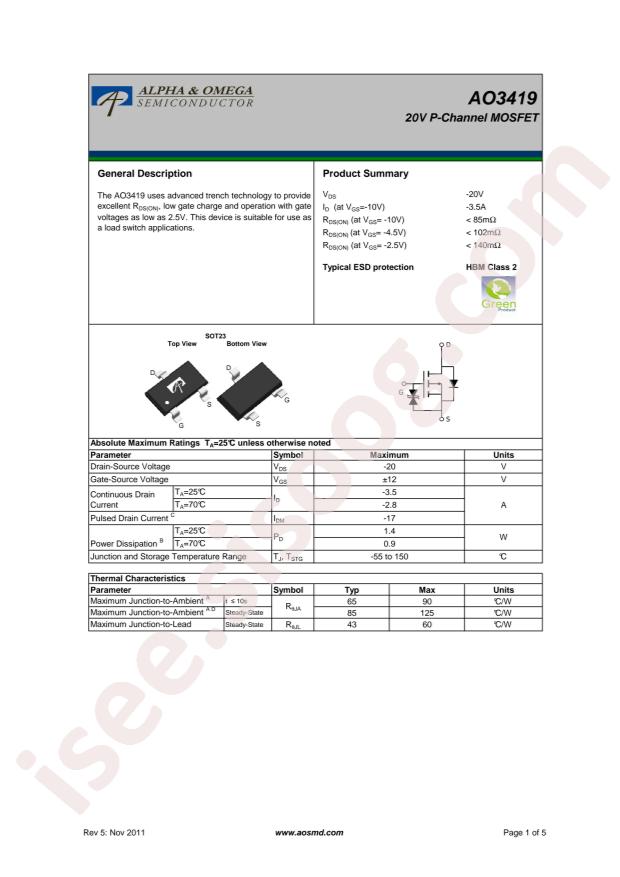

Datasheet:
Alpha & Omega Semicon AO3419
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
1.4W
-
Total Gate Charge (Qg@Vgs):
4.4nC@4.5V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
400pF@10V
-
Continuous Drain Current (Id):
3.5A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.4V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
37pF@10V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
85mΩ@4.5V,3A
-
Package:
SOT-23-3L
-
Manufacturer:
Alpha & Omega Semicon
