P4SMA75A-Q1 数据手册
其他文档
未找到其他文档！
技术规格
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/TVS

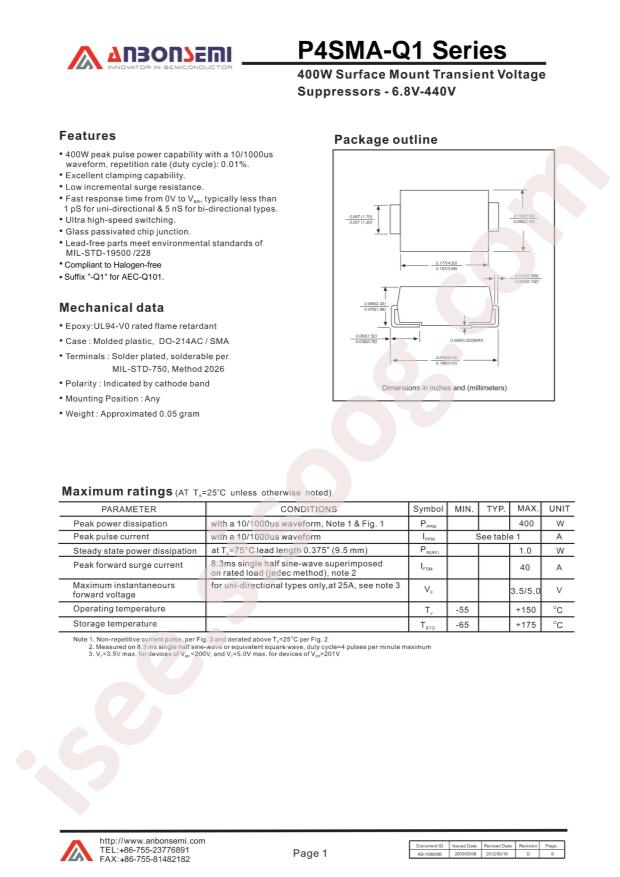

- Datasheet: AnBon P4SMA75A-Q1
- Breakdown Voltage: 71.3V
- Maximum Clamping Voltage: 103V
- Reverse Leakage Current (Ir): 5uA
- Reverse Stand-Off Voltage (Vrwm): 64.1V
- Peak Pulse Current (Ipp)@10/1000us: 4.1A
- Package: SMA
- Manufacturer: AnBon
