TPA65R160C دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPA65R160C
|
|
حجم فایل
|
85.721
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
13
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
WUXI UNIGROUP MICRO TPA65R160C
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
34W
-
Total Gate Charge (Qg@Vgs):
46nC@10V
-
Drain Source Voltage (Vdss):
700V
-
Input Capacitance (Ciss@Vds):
2.328nF@50V
-
Continuous Drain Current (Id):
20A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
7pF@50V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
140mΩ@10V,10A
-

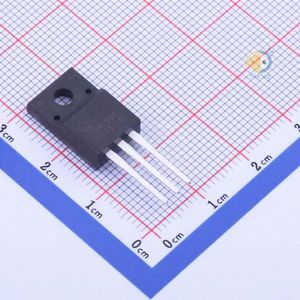

Package:
TO-220F
-
Manufacturer:
WUXI UNIGROUP MICRO
