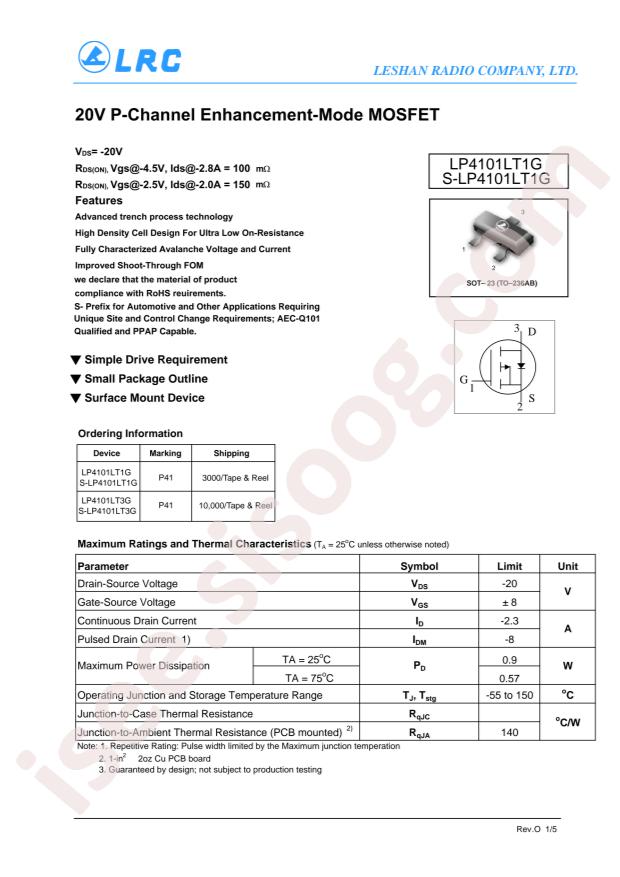

LP4101LT1G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LP4101LT1G
|
|
حجم فایل
|
75.628
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
LRC LP4101LT1G
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
900mW
-
Total Gate Charge (Qg@Vgs):
15.23nC@4.5V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
882.51pF@6V
-
Continuous Drain Current (Id):
2.3A
-
Gate Threshold Voltage (Vgs(th)@Id):
0.95V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
97.26pF@6V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
69mΩ@4.5V,2.8A
-
Package:
SOT-23(TO-236)
-
Manufacturer:
LRC
