JCS110N07I دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
JCS110N07I
|
|
حجم فایل
|
64.579
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Jilin Sino-Microelectronics JCS110N07I
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
208W
-
Total Gate Charge (Qg@Vgs):
72nC@10V
-
Drain Source Voltage (Vdss):
70V
-
Input Capacitance (Ciss@Vds):
3.8nF@25V
-
Continuous Drain Current (Id):
110A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
330pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
6mΩ@10V,40A
-

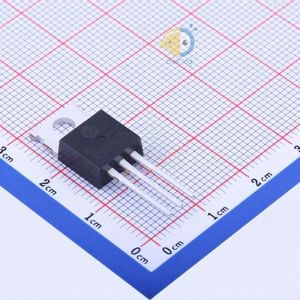

Package:
TO-220C
-
Manufacturer:
Jilin Sino-Microelectronics
