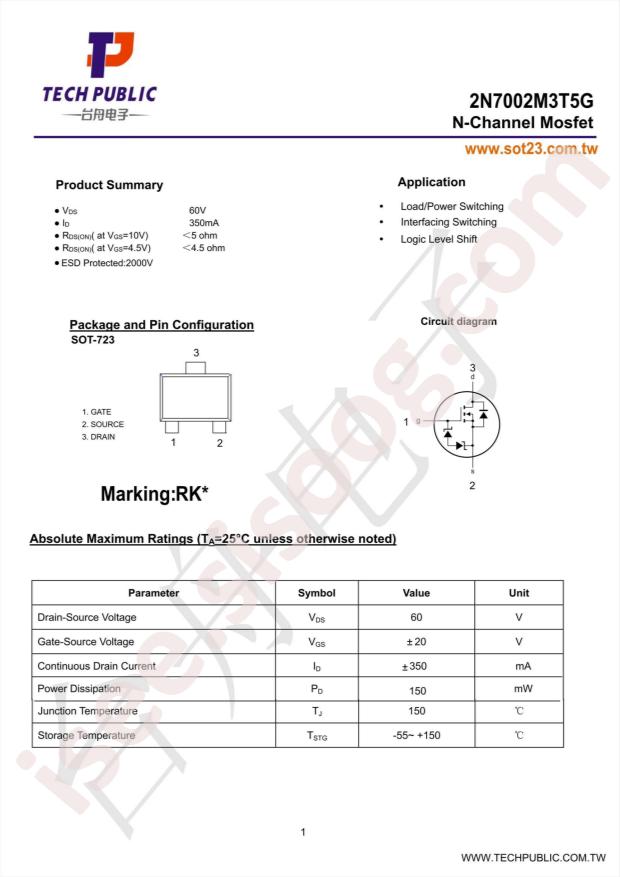

2N7002M3T5G دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
2N7002M3T5G
|
|
حجم فایل
|
55.143
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
3
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
TECH PUBLIC 2N7002M3T5G
-
Operating Temperature:
+150°C@(Tj)
-
Power Dissipation (Pd):
150mW
-
Total Gate Charge (Qg@Vgs):
-
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
42pF@10V
-
Continuous Drain Current (Id):
350mA
-
Gate Threshold Voltage (Vgs(th)@Id):
1.85V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
1.5Ω@4.5V,200mA
-

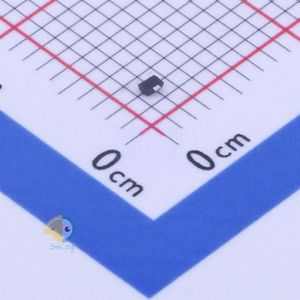

Package:
SOT-723
-
Manufacturer:
TECH PUBLIC
