HYG045N03LA1C2 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
HYG045N03LA1C2
|
|
حجم فایل
|
65.024
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
HUAYI HYG045N03LA1C2
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
52W
-
Total Gate Charge (Qg@Vgs):
24.1nC@4.5V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
2.13nF@25V
-
Continuous Drain Current (Id):
78A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.6V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
223pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
3.6mΩ@10V,20A
-

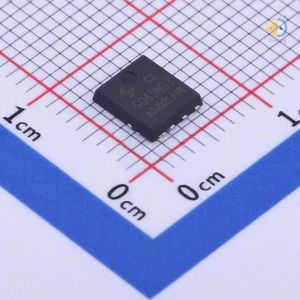

Package:
DFN-8(5x6)
-
Manufacturer:
HUAYI
