WTM2302 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
WTM2302
|
|
حجم فایل
|
58.141
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
WPMtek(Wei Pan Microelectronics) WTM2302
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
800mW
-
Total Gate Charge (Qg@Vgs):
2.9nC@4.5V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
260pF@10V
-
Continuous Drain Current (Id):
2.6A
-
Gate Threshold Voltage (Vgs(th)@Id):
750mV@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
27pF@10V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
42mΩ@4.5V,2.6A
-

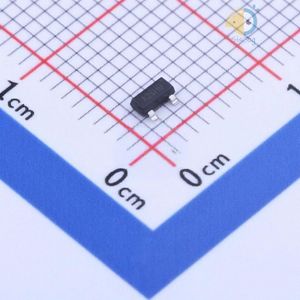

Package:
SOT-23(TO-236)
-
Manufacturer:
WPMtek(Wei Pan Microelectronics)
