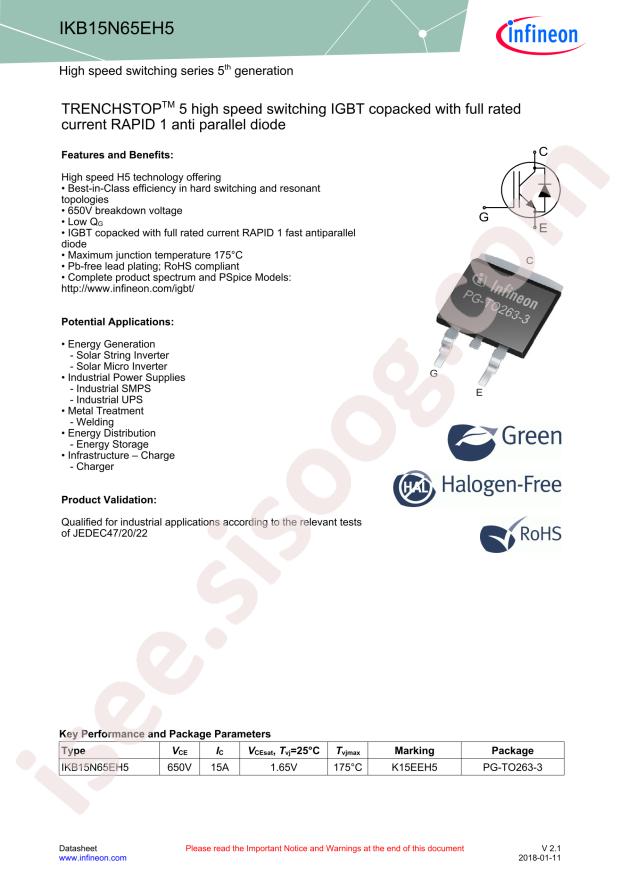

IKB15N65EH5 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
IKB15N65EH5
|
|
حجم فایل
|
63.266
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
16
|
مشخصات فنی
-
RoHS:
true
-
Type:
-
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:
Infineon Technologies IKB15N65EH5
-
Operating Temperature:
-40°C~+175°C@(Tj)
-
Collector Current (Ic):
30A
-
Power Dissipation (Pd):
105W
-
Turn?on Delay Time (Td(on)):
16ns
-
Input Capacitance (Cies@Vce):
930pF@25V
-
Turn?on Switching Loss (Eon):
0.4mJ
-
Diode Forward Voltage (Vf@If):
1.45V@15A
-
Total Gate Charge (Qg@Ic,Vge):
38nC@15A,15V
-
Turn?off Delay Time (Td(off)):
145ns
-
Pulsed Collector Current (Icm):
45A
-
Turn?off Switching Loss (Eoff):
0.08mJ
-
Diode Reverse Recovery Time (Trr):
70ns
-
Collector Cut-Off Current (Ices@Vce):
50uA@650V
-
Collector-Emitter Breakdown Voltage (Vces):
650V
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4V@150uA
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Vge):
1.65V@15A,15V
-
Package:
TO-263-3
-
Manufacturer:
Infineon Technologies
