BCX56-16 BL HD 数据手册
其他文档
未找到其他文档！
技术规格
- RoHS: true
- Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet: Guangdong Hottech BCX56-16 BL HD
- Transistor Type: NPN
- Operating Temperature: -65°C~+150°C@(Tj)
- Collector Current (Ic): 1A
- Power Dissipation (Pd): 1W
- Transition Frequency (fT): 100MHz
- DC Current Gain (hFE@Ic,Vce): 63@150mA,2V
- Collector Cut-Off Current (Icbo): 100nA
- Collector-Emitter Breakdown Voltage (Vceo): 80V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 500mV@500mA,50mA

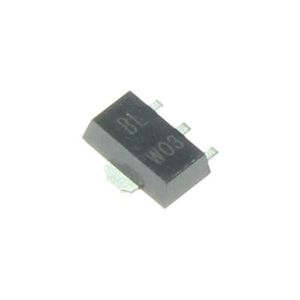

- Package: SOT-89
- Manufacturer: Guangdong Hottech
