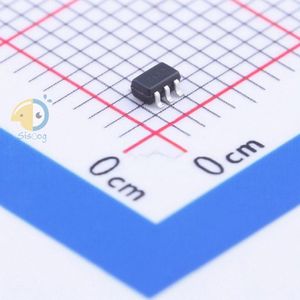

DMC2004DWK-7 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
DMC2004DWK-7
|
|
حجم فایل
|
87.606
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Type:
1PCSN-Channel&1PCSP-Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-

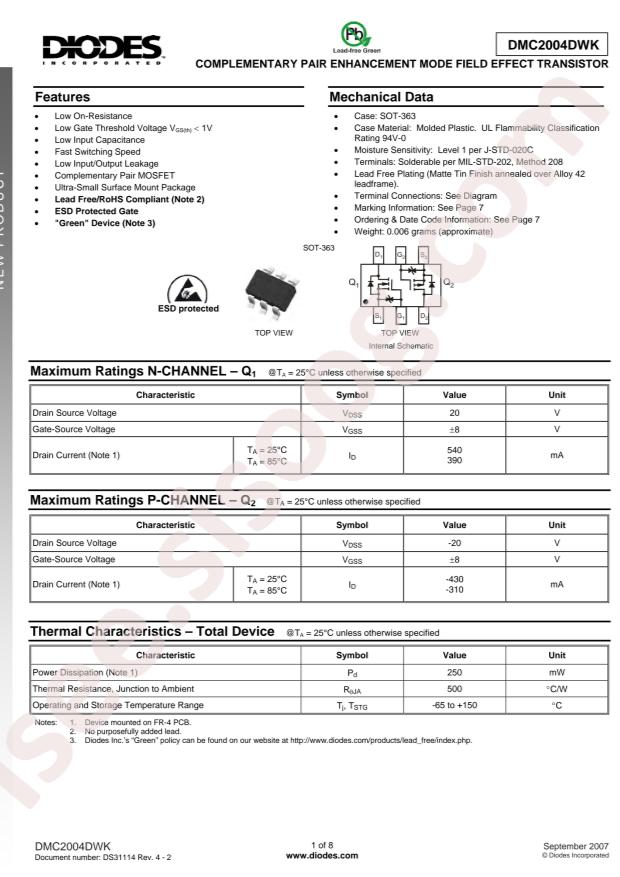

Datasheet:
Diodes Incorporated DMC2004DWK-7
-
Operating Temperature:
-65°C~+150°C@(Tj)
-
Power Dissipation (Pd):
250mW
-
Total Gate Charge (Qg@Vgs):
-
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
150pF@16V;175pF@16V
-
Continuous Drain Current (Id):
540mA;430mA
-
Gate Threshold Voltage (Vgs(th)@Id):
1V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
20pF@16V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
0.4Ω@4.5V,540mA;0.7Ω@4.5V,430mA
-
Package:
SOT-363-6(SC-70-6)
-
Manufacturer:
Diodes Incorporated
