DMN2058U-7 数据手册
其他文档
未找到其他文档！
技术规格
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs

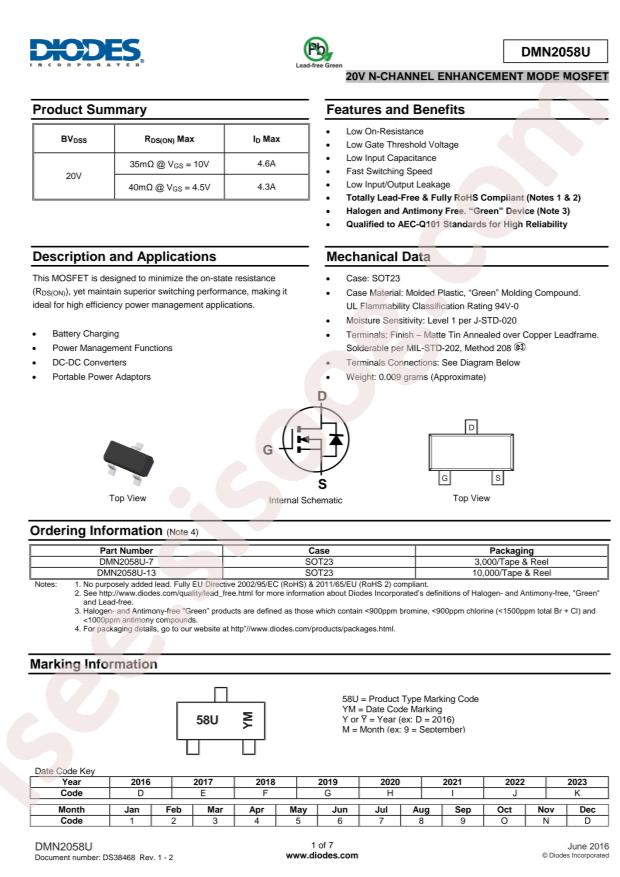

- Datasheet: Diodes Incorporated DMN2058U-7
- Operating Temperature: -55°C~+150°C@(Tj)
- Power Dissipation (Pd): 1.13W
- Total Gate Charge (Qg@Vgs): 7.7nC@10V
- Drain Source Voltage (Vdss): 20V
- Input Capacitance (Ciss@Vds): 281pF@10V
- Continuous Drain Current (Id): 4.6A
- Gate Threshold Voltage (Vgs(th)@Id): 1.2V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 35mΩ@10V,6A
- Package: SOT-23
- Manufacturer: Diodes Incorporated
