RXEF375 数据手册
其他文档
未找到其他文档！
技术规格
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/Resettable Fuses

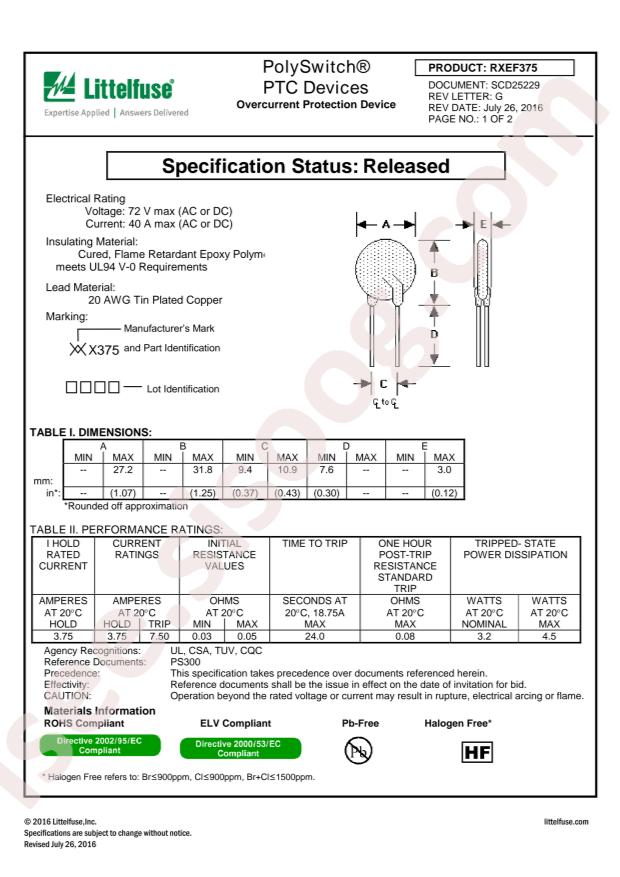

- Datasheet: Littelfuse RXEF375
- Hold Current: 3.75A
- Trip Current: 7.5A
- Power Dissipation: 3.2W
- Current Rating (Max): 40A
- Maximum Time to Trip: 24s
- Operating Temperature: -40°C~+85°C
- Operating Voltage (Max): 72V
- Resistance - Initial (Ri) (Min): 30mΩ
- Resistance - Post Trip (R1) (Max): 80mΩ
- Package: Plugin
- Manufacturer: Littelfuse
