BCX51-16,115 Datasheet

BCX51,115

Datasheet specifications

Datasheet's name BCX51,115
File size 51.873 KB
File type pdf
Number of pages 23

Download Datasheet BCX51,115

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: Nexperia BCX51-16,115
  • Transistor Type: PNP
  • Operating Temperature: +150°C@(Tj)
  • Collector Current (Ic): 1A
  • Power Dissipation (Pd): 1.3W
  • Transition Frequency (fT): 145MHz
  • DC Current Gain (hFE@Ic,Vce): 100@150mA,2V
  • Collector Cut-Off Current (Icbo): 100nA
  • Collector-Emitter Breakdown Voltage (Vceo): 45V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 500mV@500mA,50mA

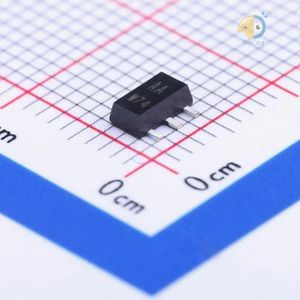

  • Package: SOT-89
  • Manufacturer: Nexperia
