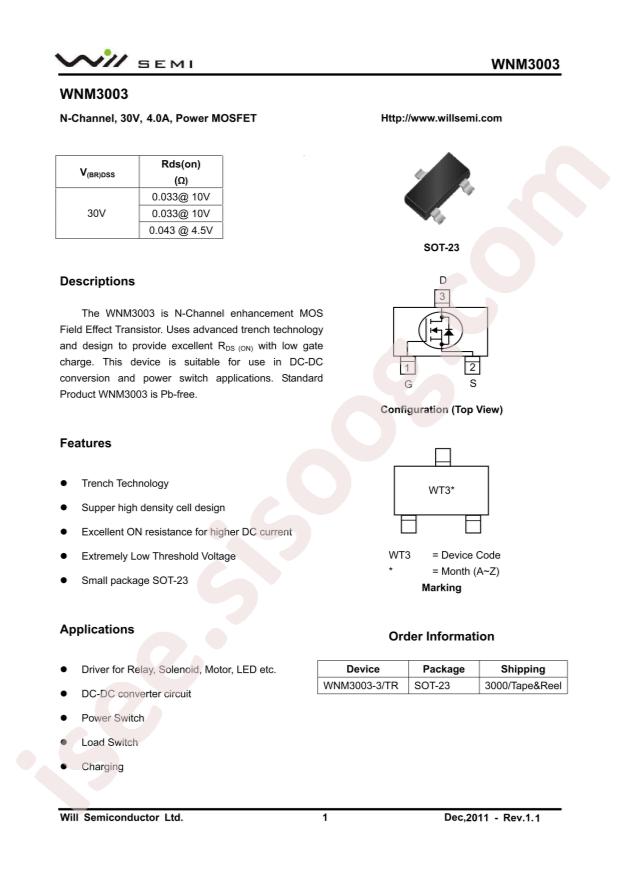

دیتاشیت WNM3003-3/TR
مشخصات دیتاشیت
| نام دیتاشیت |
WNM3003-3/TR
|
| حجم فایل |
51.281
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
7
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
WILLSEMI(Will Semicon) WNM3003-3/TR
-
Operating Temperature:
+150°C@(Tj)
-
Power Dissipation (Pd):
700mW
-
Total Gate Charge (Qg@Vgs):
11.6nC@10V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
570pF@15V
-
Continuous Drain Current (Id):
3.7A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.6V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
64pF@15V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
33mΩ@10V,2.5A
-
Package:
SOT-23
-
Manufacturer:
WILLSEMI(Will Semicon)
