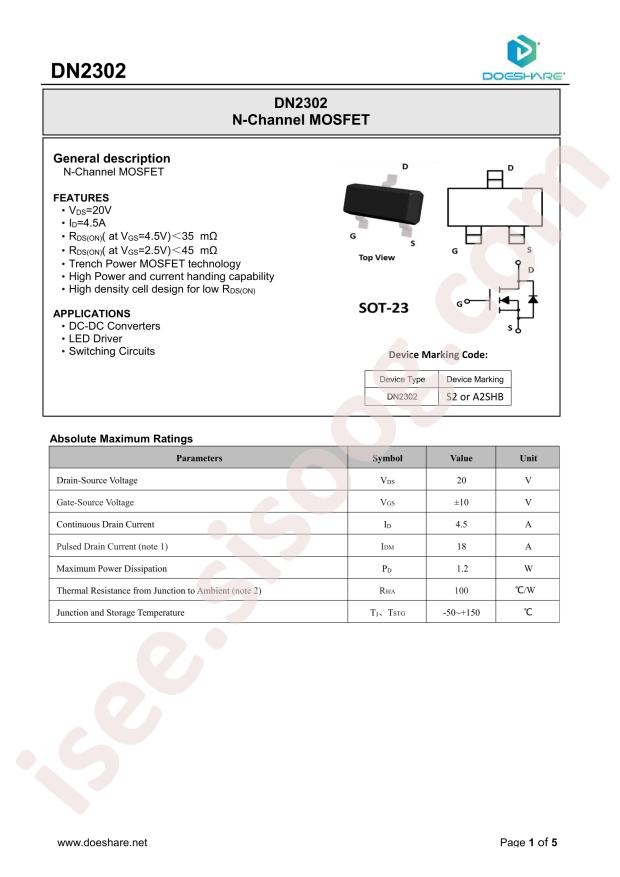

DN2302 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
DN2302
|
|
حجم فایل
|
56.564
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Doeshare DN2302
-
Operating Temperature:
-50°C~+150°C@(Tj)
-
Power Dissipation (Pd):
1.2W
-
Total Gate Charge (Qg@Vgs):
4.7nC@5V
-
Drain Source Voltage (Vdss):
20V
-
Input Capacitance (Ciss@Vds):
280pF@10V
-
Continuous Drain Current (Id):
4.5A
-
Gate Threshold Voltage (Vgs(th)@Id):
0.6V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
42pF@10V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
28mΩ@4.5V,4A
-

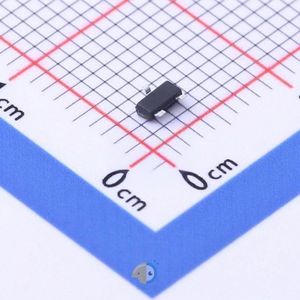

Package:
SOT-23(TO-236)
-
Manufacturer:
Doeshare
