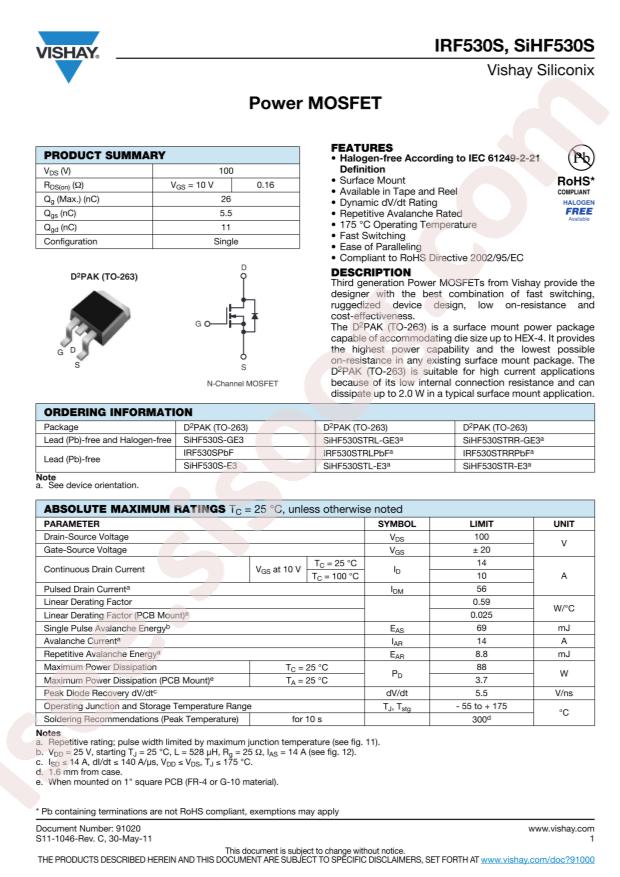

IRF530SPBF دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
IRF530SPBF
|
|
حجم فایل
|
102.295
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Vishay Intertech IRF530SPBF
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
3.7W;88W
-
Total Gate Charge (Qg@Vgs):
26nC@10V
-
Drain Source Voltage (Vdss):
100V
-
Input Capacitance (Ciss@Vds):
670pF@25V
-
Continuous Drain Current (Id):
14A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
160mΩ@8.4A,10V
-
Package:
D2PAK
-
Manufacturer:
Vishay Intertech
