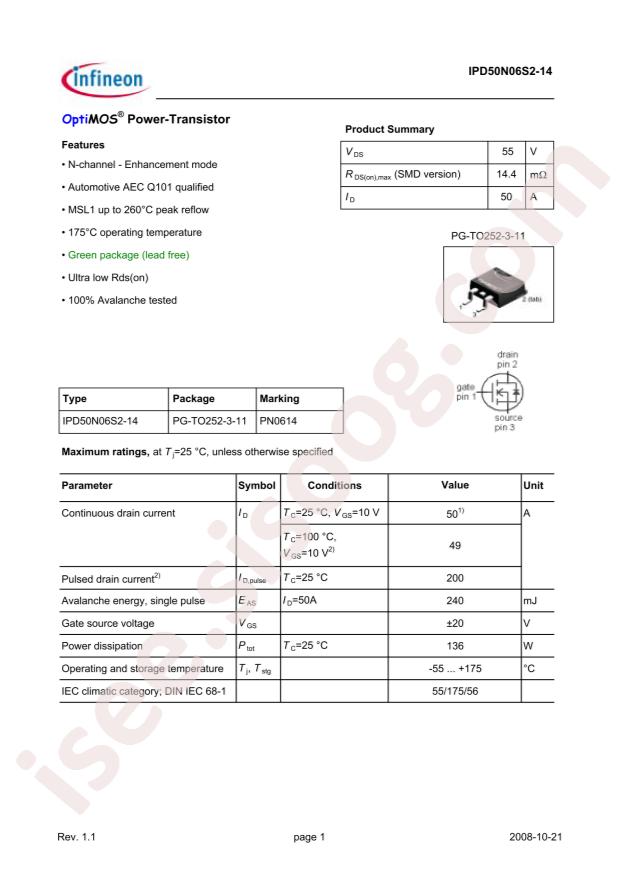

IPD50N06S2-14 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
IPD50N06S2-14
|
|
حجم فایل
|
57.47
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Infineon Technologies IPD50N06S2-14
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
136W
-
Total Gate Charge (Qg@Vgs):
52nC@10V
-
Drain Source Voltage (Vdss):
55V
-
Input Capacitance (Ciss@Vds):
1485pF@25V
-
Continuous Drain Current (Id):
50A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@80uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
14.4mΩ@32A,10V
-
Package:
TO-252
-
Manufacturer:
Infineon Technologies
